 | £9,750 | ALEX-TECH AML-618 ACCURACY HIGH SPEED TOOLROM LATHE | When new;
English / Metric gearbox with dial selection
The T.I.R. of the spindle when new is guaranteed to 80 millionths or less
Swing over bed 11" (280mm)
Well suited to parts for high precision model making, automotive, aircraft etc.
The spindle is supported by 2 point reloaded precision angular contact ball bearings to absorb the radial and axial forces.
Precision gearbox for threading, simply change knob for English or Metric.
Hardened and precision ground special alloy steel bed ways.
Independent electrical variable speed can be changed under all operating condition.
Exact variable speed can be changed while the tool is cutting.
Turcite B bearing surface between carriage and bed, reduces friction.
Thread length control stops with fine adjustment and is easy to move into position.
Leadscrew, cross slide screw, compound slide screw and tailstock screw are all hardened and ground.
| 18" between centres
11" swing
9" over carriage
6" swing over cross slide
carriage power cross feed range 5/16" - 7"
cross slide power feed range 3/16" - 4"
cross slide travel 6"
compound slide travel 3"
Tailstock spindle taper 2MT
Tailstock spindle taper 3 3/4"
Imperial thread cutting 11 - 108 TPI
Metric thread cutting 0.275 - 2.7mm
Machine weight 830 kilos
Machine Dimension 1765 x 715 x 1465mm
Complete with collets, chucks and more as photographed | VIEW MORE DETAIL |
 | £1,950 | CHARLES TAYLOR SPINNING LATHE (BIRMINGHAM) | 7" x 24" | | VIEW MORE DETAIL |

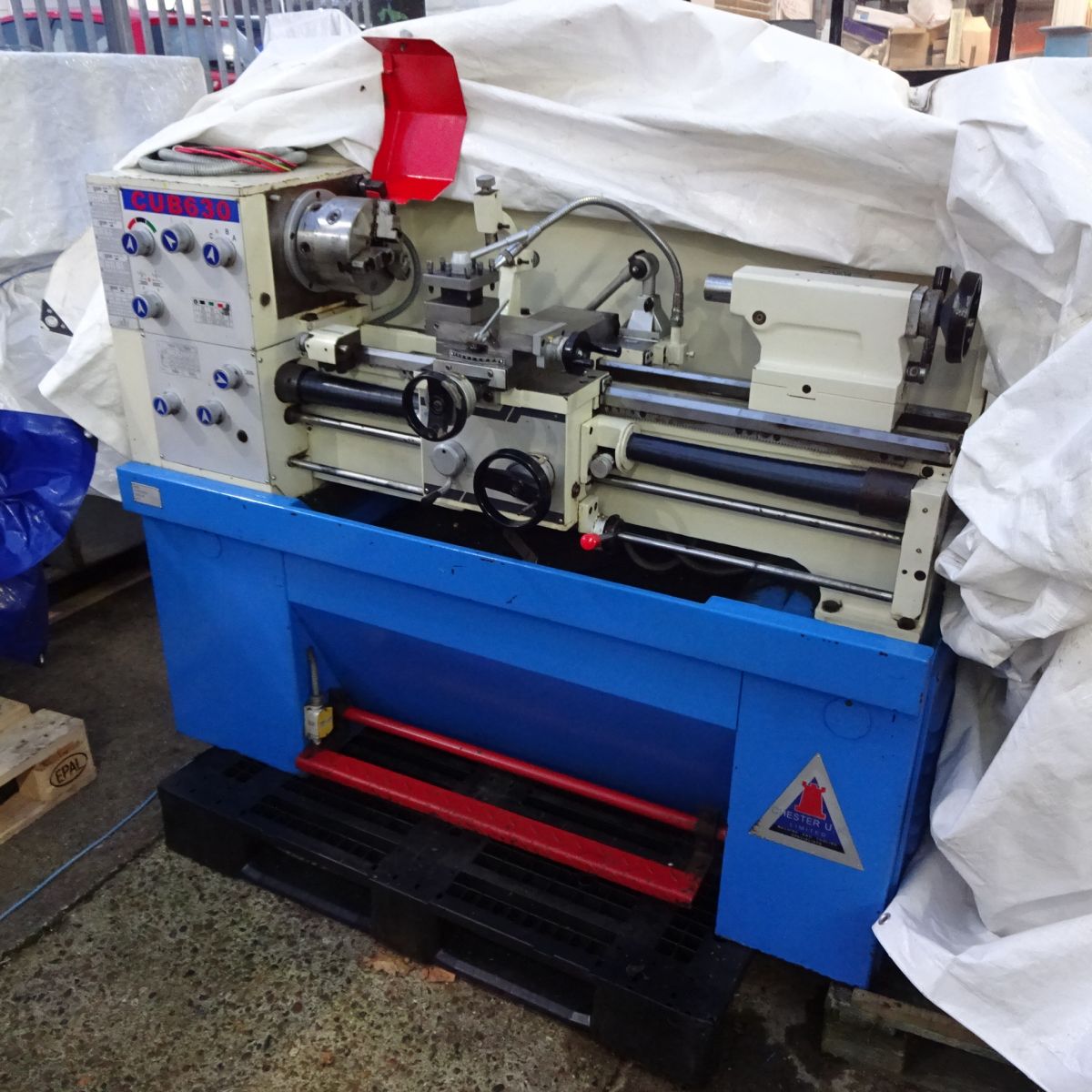

 | £2,950 | CHESTER CUB630 6 | Machine Specifications of new machine, some specifications on our machine may have been altered.
Motor 1.5Hhp / 415V
Crosslide travel 160mm
Tailstock Quill Travel 75mm
Imperial Pitches 4-72TPI
Metric Pitches 0.25-9.0mm
Speed Range (9) 60-2000rpm
Spindle Bore 38mm
Distance between centre 750mm
Swing Over Bed 300mm
Swing Over Cross Slide 180mm
Gap length 182mm
Centre Height 150mm
Spindle Nose - Camlock D1-5
Longditudinal Feed 0.03-0.423mm
Cross Slide Travel 160mm
Top Slide Travel 82mm
Tail Stock Quill Diameter 38mm
Tail Stock Quill Travel 75mm
Tailstock Quill Taper MT3
Length 1650mm
Width 680mm
Height 1200mm
Weight 500 Kgs
Swing in Gap 430mm
Spindle Taper MT5 | Complete with attachments; 4 jaw chuck, fixed steady, travelling steady, face plate etc. still greased from new, the lathe has done no serious work / 3 phase | VIEW MORE DETAIL |
 | £4,950 | JET GH1440 W-3 LATHE | 7" x 40" centres, geared head, gearbox, gap bed, power feeds, leadscrew dial indicator, 3 jaw chuck, fixed and travelling steadies, 4 way tool post, footstop | Very nice all round lathe! | VIEW MORE DETAIL |
 | £12,000 | Schaublin 70 | High precision lathe complete with a vast range of accessories and metric collets, please view the many photos! | just arrived! | VIEW MORE DETAIL |
 | £950 | SMART AND BROWN MODEL SABEL | 4 1/2" precision centre lathe
Smart and Brown Sabel lathe 4 1/2" X 20" 240volts
One small crack shown in photo number 1012 | 240 volts / part exchange no return | VIEW MORE DETAIL |

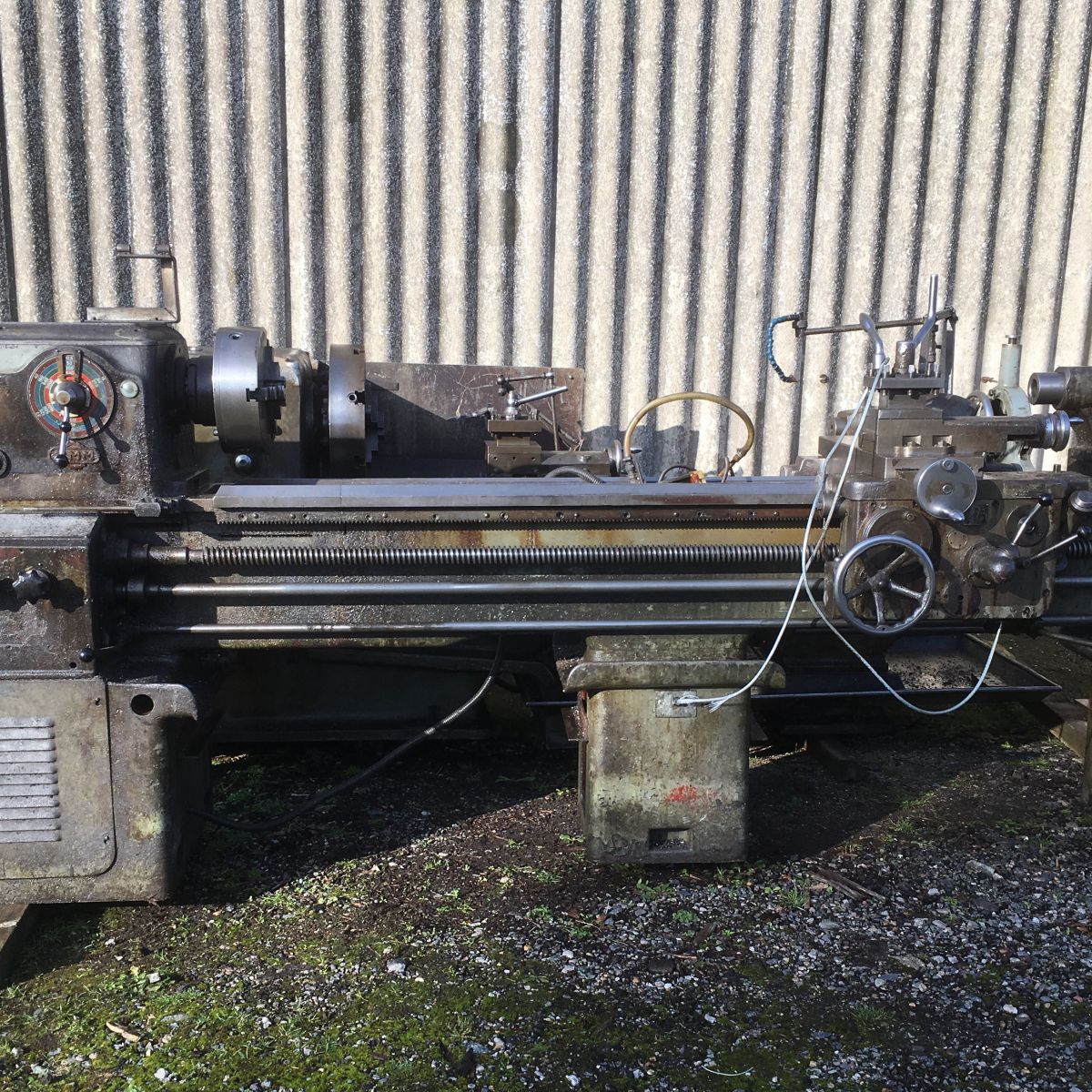

.jpg) | £1,650 | 3MM (CHEQ) | 10 x 84", 3 jaw chuck, 4 way tool post, fixed and travelling steadies, coolant pump, L1 Taper fitting headstock | 12ft long overall / Not at Sidcup yard / view by appointment only.
NOT ON SITE. | VIEW MORE DETAIL |
 | £1,225 | TAYLOR SPINNING LATHE | 3 Phase | | VIEW MORE DETAIL |

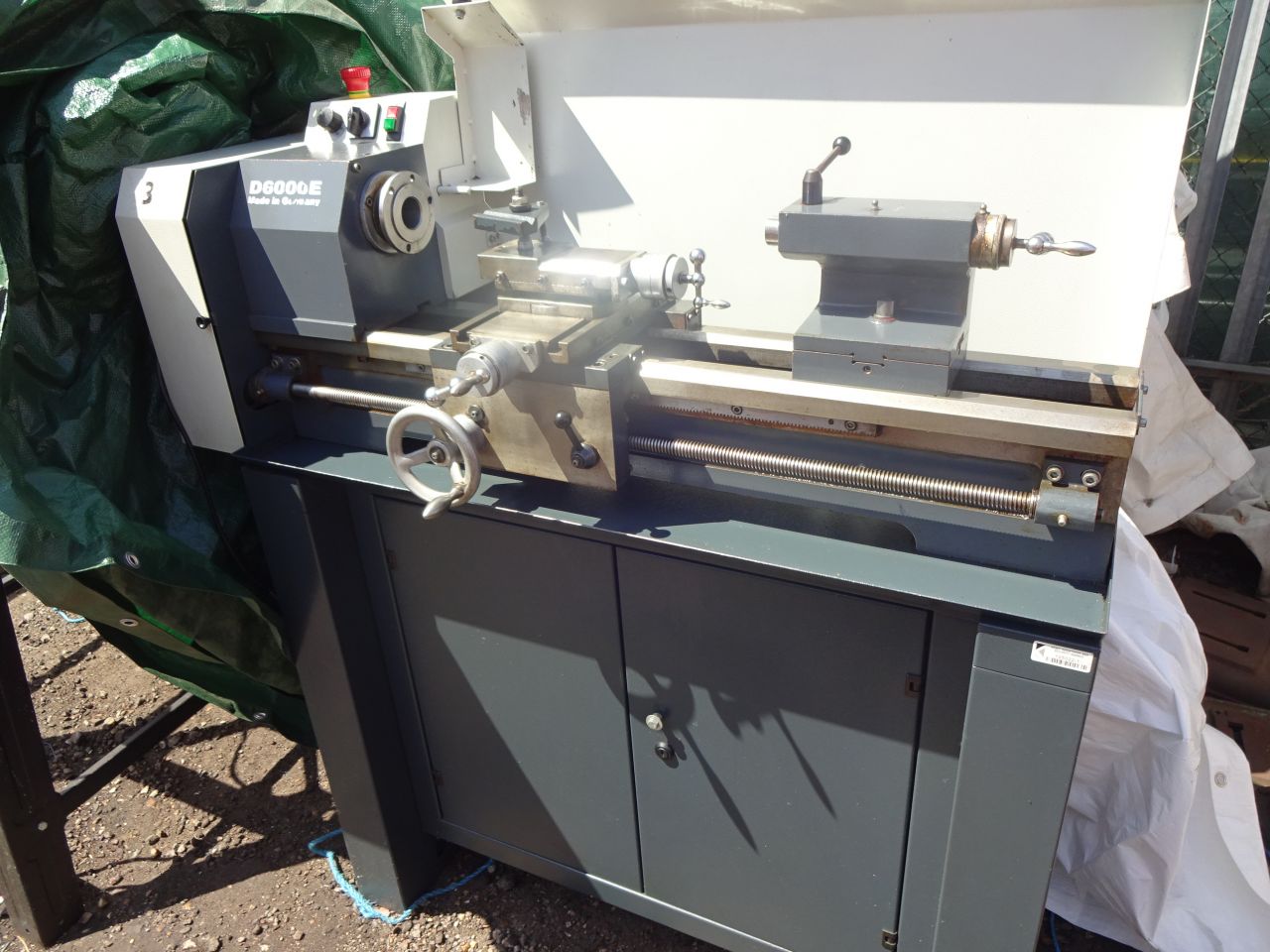

 | £1,950 | Wabeko D6000E | General Specification on the model in general, comes currently only as seen in photos;
TECHNICAL DATA
Working range
Center distance 600 mm
Center height 135 mm
Turning Ø above cross slide 170 mm
Turning Ø above the guideways 270 mm
Bed width 185 mm
Machine precision
Machine precision according to DIN 8606
True running accuracy of spindle nose 0.005 mm
cylindrical turning to 100 mm cantilevered 0.01 mm
cylindrical turning with a finishing cut to 300 mm between the tips 0.015 mm
Main drive motor
Main drive motor 230 V, 50/60 Hz 1.4 kW
electronically infinitely variable drive 30 – 2300 U/min
Drive technology
Spindle electronics with multiple fault monitoring circuit ●
e.g. turning a steel shaft Ø 50 mm in one infeed approx. 10 mm
Headstock
Housing made of grey cast iron ●
V-shaped slot scraped by hands
Spindle head in 2 adjustable precision DIN tapered roller bearings ●
Right-left rotation of the main spindle ●
Intermediate gear between main spindle and drive ●
high torque even in the lower speed range, e.g. for machining hard-to-cut materials ●
Main spindle bore Ø 20 mm
Taper in main spindle MT3
Main spindle nose Ø 70 mm according to DIN 6350
Tailstock with quick adjustment
lateral adjustability of tailstock upper part ± 10 mm
Tailstock sleeve mit Innenmorsekegel MK2
Travel of tailstock sleeve 65 mm
Scale ring reading accuracy 0.1 mm
Tool slide
universally adjustable ●
Dovetail guides readjustable free of play
Reading accuracy of the scale rings 0.05 mm
Travel of cross slide 140 mm
Travel of longitudinal slide 60 mm
Longitudinal slide can be swiveled through 360°
max. height of turning tools 20 mm
Cutting scrapers prevent dirt and cuttings entering the guideways ●
Thread cutting (standard)
with lead screw drive and change gear quadrant ●
Tumbler gear for left- and right-hand threads
Automatic longitudinal feed rate 0.085 und 0.16 mm/rev
Change gear set for thread cutting metric 0.25 – 7.0 mm
inch 10 – 40 TPI
Overload clutch
on the lead screw and the lead screw drive to avoid damage to the feed system ●
Dimensions and weight
Machine dimensions without packaging W1200 x D510 x H470 mm
Weight without packaging 150 kg | 4 jaw chuck, cabinet stand, 240 volts variable speed, two machines available! | VIEW MORE DETAIL |
 | £3,250 | Wolf-Jahn | Precision lathe complete accessories and collets, please see photos | just arrived | VIEW MORE DETAIL |
